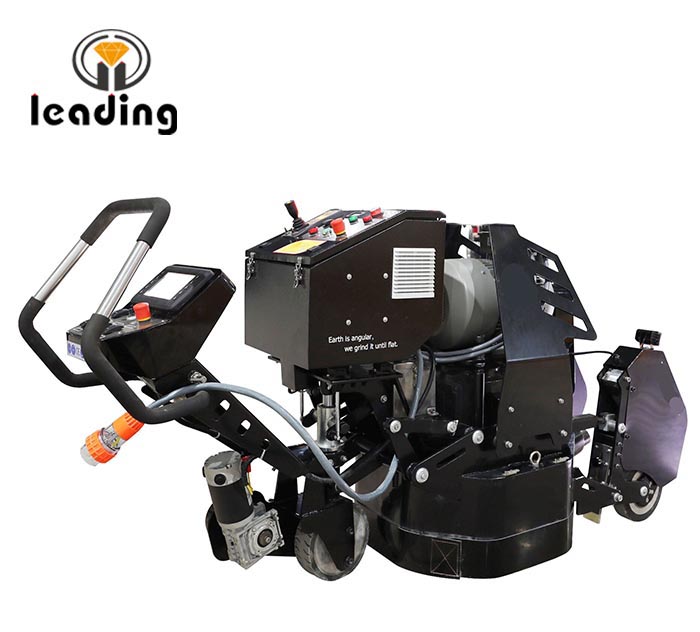

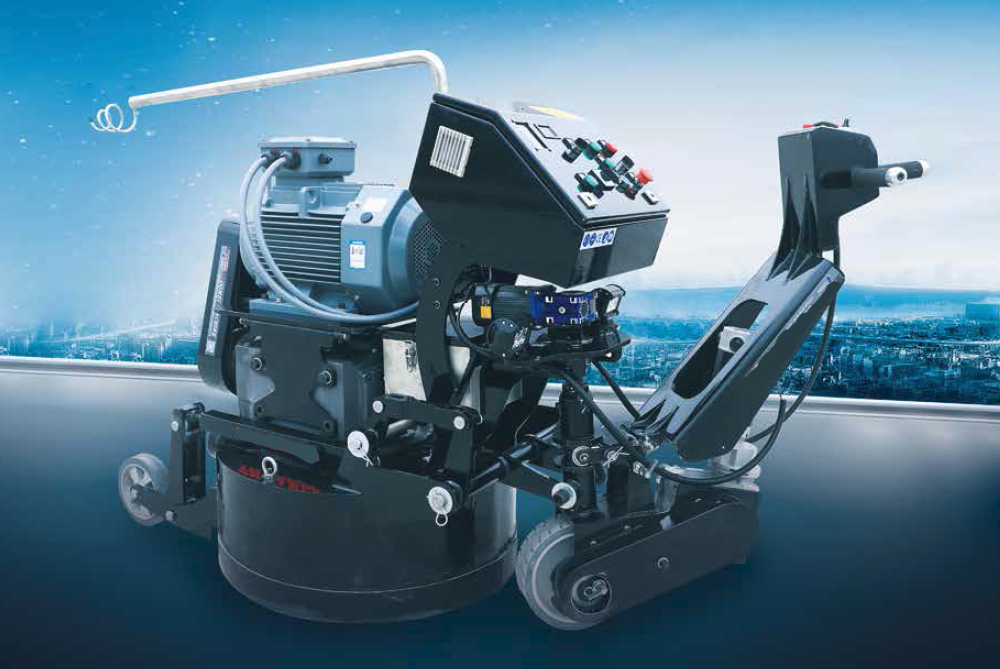

LDT-640M Concrete Floor Milling Machine

LDT-640M Concrete Floor Milling Machine

  • Detailed Specification
  • FAQ

    LDT-640M Concrete Floor Milling Machine

    LDT-640M Concrete Floor Milling Machine

    LDT-640M Concrete Floor Milling Machine

    LDT-640M Concrete Floor Milling Machine


    Born in 2017, LDT-640M Concrete Floor Milling Machine was created to solve incurable diseases in the project. It is also the most efficient concrete surface milling machine in the history. You will not feel confused by the depth of removal of concrete surfaces. Compared to other traditional milling machines on the market, LDT-640M Concrete Floor Milling Machine is a unique gear driving planetary operation mode with 3-5 times higher work efficiency.

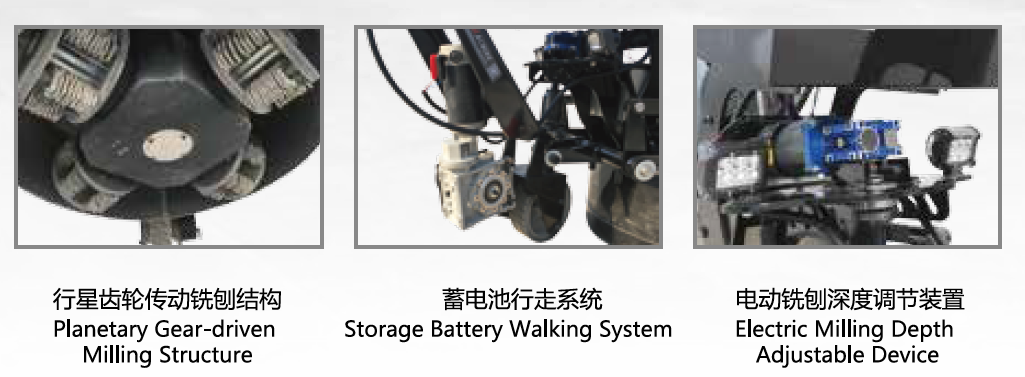

    LDT-640M Concrete Floor Milling Machine is 640mm ultral-high milling width. The application of gear transmission planetary operation efficient operation technology, greatly improve the construction efficiency. Maximum single concrete milling depth up to 30mm, complete 100% full milling, no strip grooves left on the surface of the processed ground.With automatic adjustment milling depth and automatic walking device, so that the machine operation more convenient.Equipped with an electric frequency battery device, the machine is not connected to the power distribution line, can also easily operate transportation and handling. The complex construction environment will no longer be a problem.All the construction problems have been solved.



    Technical Parameters

    ModelLDT-640M   Concrete Floor Milling Machine
    MOTOR15KW   20HP
    VOLTAGE3   phase 220V/380V/460V
    AMPERE30A-40A
    WORKING WIDTH25.20   in / 640 mm
    MILLING DEPTH0-1.18   in / 0-30 mm
    DISTANCE TO WALL1.57   in / 40 mm
    WEIGHT1807.79   lbs /820 kg
    LENGTH83.86   in / 2130 mm
    WIDTH31.50   in / 800 mm
    HEIGHT47.24   in / 1200 mm
    REVOLUTION180   rpm
    ROTATION1100rpm
