LDT-640LM Laser Floor Grinding / Milling Machine

LDT-640LM Laser Floor Grinding / Milling Machine

  • Detailed Specification
  • FAQ

    LDT-640LM Laser Floor Grinding / Milling Machine

    LDT-640LM Laser Floor Grinding / Milling Machine

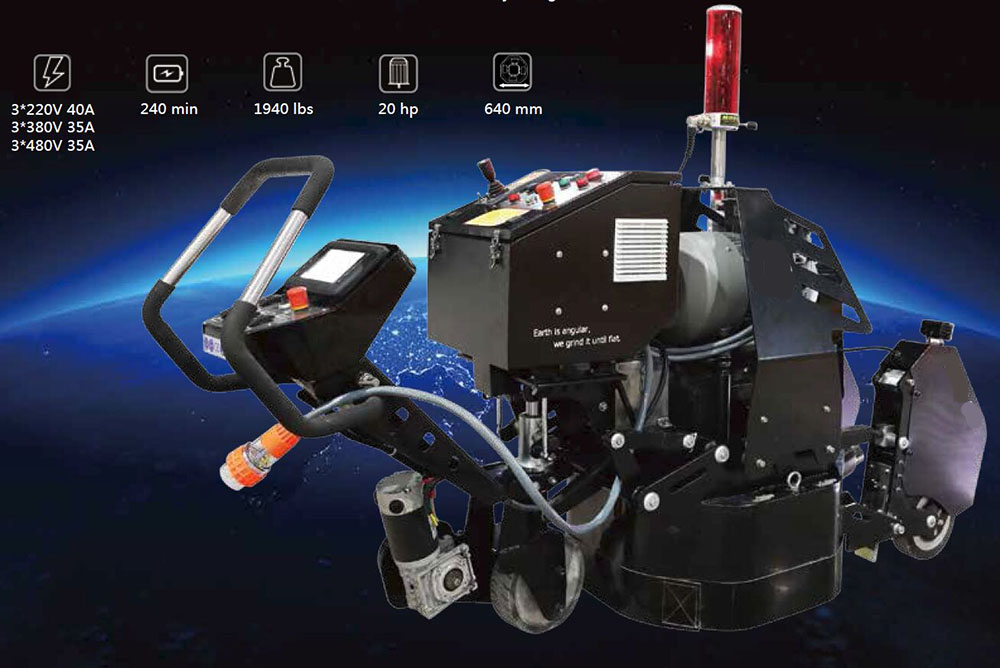

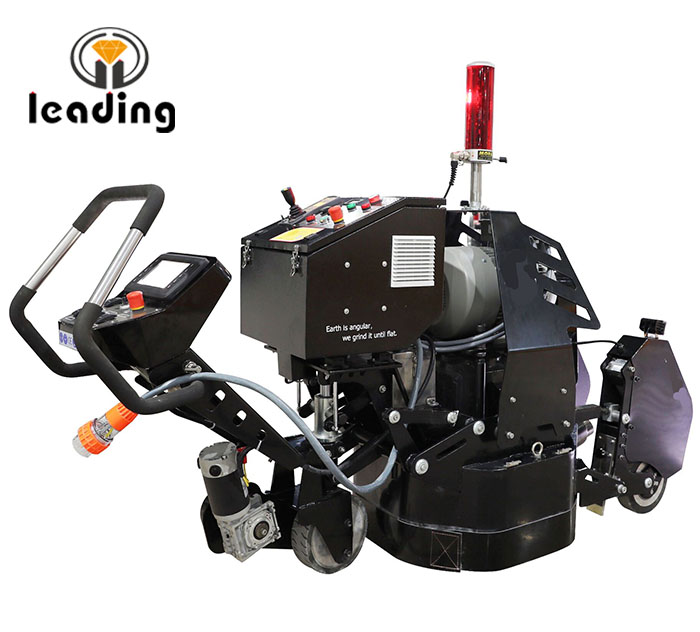

    LDT-640LM Laser Floor Grinding / Milling Machine is the world's first laser milling grinder. During the 20 years of our development, we have been focusing on the issue of floor flatness, hoping to solve the floor flatness effectively through the strength of research and development. This is a long process for our company, from China first concrete laser screed machine, to the first laser grinding machine. Today we solemnly launched for you the world's first laser milling grinder.

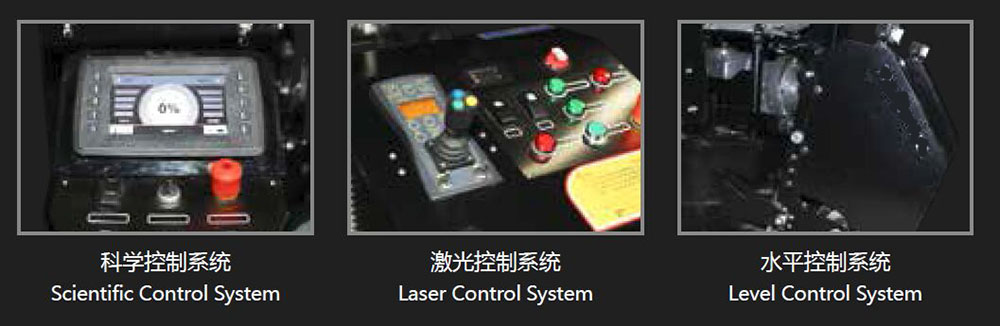

    This machine can effectively solve the problem of flatness, and at the same time, it has intelligent detection and efficient construction. We can solve the problem of high-shelf aisle, AGV trolley and hovercraft handling floor flatness through this equipment, and meet its operating standards. Through the laser milling grinder, we can be directly applied to the floor treatment, saving the second leveling of the pavement work.


    Also we can be applied to the treatment of the base surface, to solve the problem of the terrazzo base flatness, improve the decorative effect of the floor. The birth of LDT-640LM Laser Floor Grinding / Milling Machine will lead the floor industry to higher floor flatness standard.


    Technical Paramerers:

    ModelLDT-640LM Laser Floor Grinding / Milling Machine
    MOTOR15KW   20HP
    VOLTAGE3   phase 220V/380V/460V
    AMPERE30A-40A
    WORKING WIDTH25.20   in / 640 mm
    MILLING DEPTH0-1.18   in / 0-30 mm
    DISTANCE TO WALL1.57   in / 40 mm
    WEIGHT1807.79   lbs /820 kg
    LENGTH83.86   in / 2130 mm
    WIDTH31.50   in / 800 mm
    HEIGHT47.24   in / 1200 mm
    REVOLUTION180   rpm
    ROTATION1100rpm
