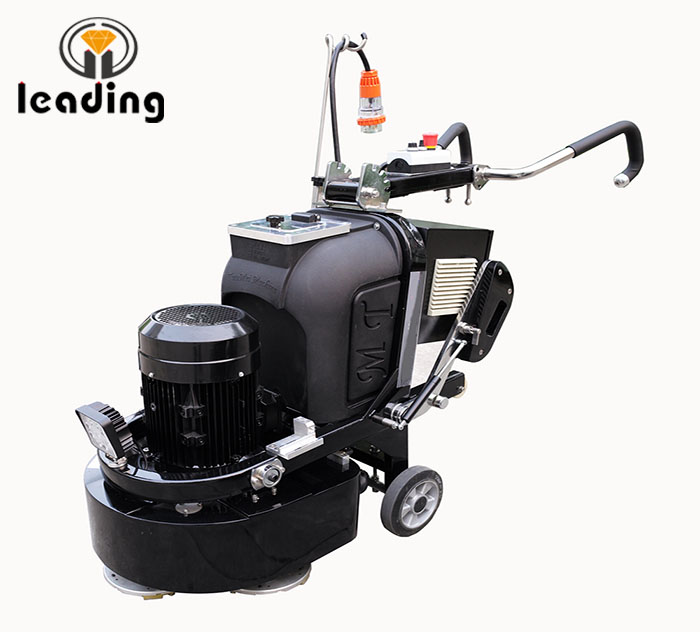

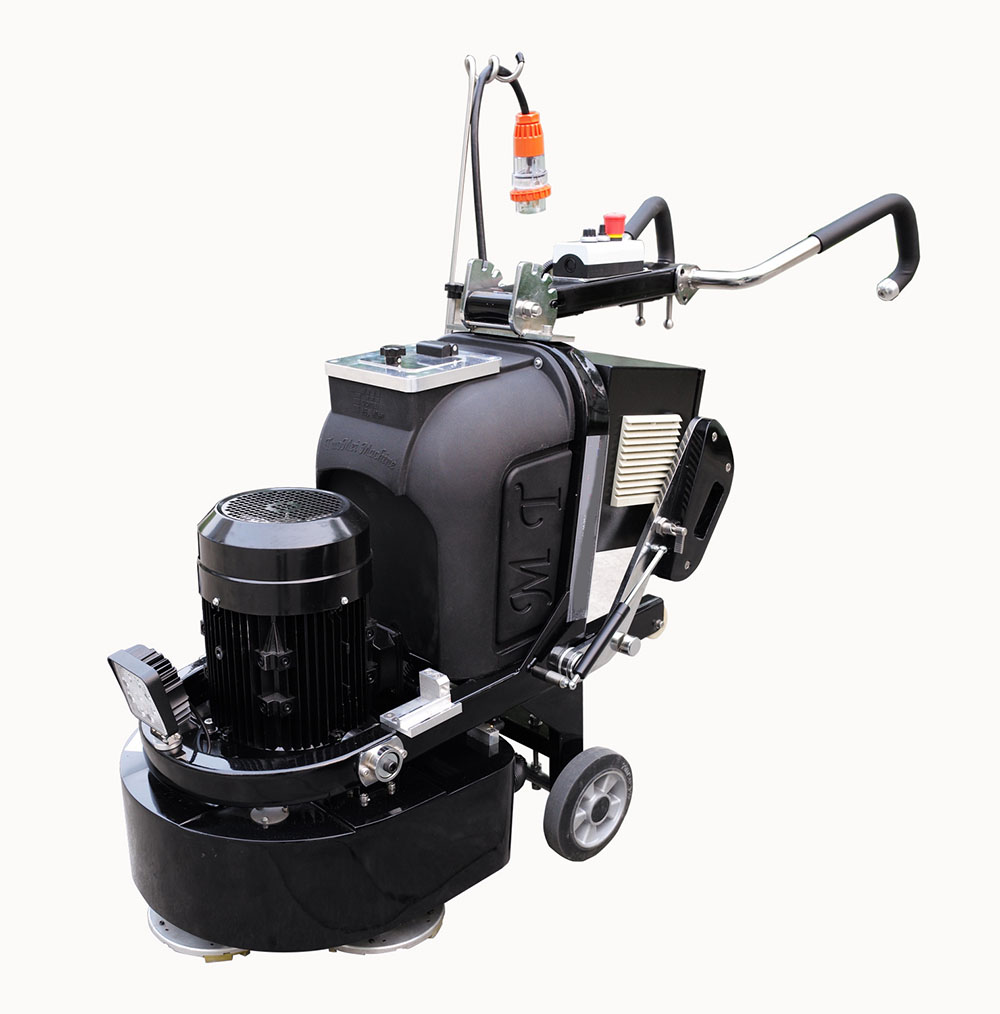

LDT-520 Gear-Driving Planetary Floor Grinding / Polishing Machine

LDT-520 Gear-Drive Planetary Floor Grinding / Polishing Machine

  • Detailed Specification
  • FAQ

    LDT-520 Gear-Driving Planetary Floor Grinding / Polishing Machine

    LDT-520 Gear-Driving Planetary Floor Grinding / Polishing Machine


    If you are looking for a lightweight and convenient grinding machine, it can meet the requirements of  industry floors and commercial floors,  it has the equivalent of construction effect of large equipment, LDT-520 Gear-Driving Planetary Floor Grinding / Polishing Machine is your best choice. It continues LEADING classic gear-driving design to ensure the stability and efficient of machines, using single phase 220V power input to facilitate the construction of the machine, it can adjust grinding pressure for different floor, reduce the requirement of voltage and current, machines designed by mechanical ergonomic to make the operator keep a relaxed state while working.


    Using single phase 220V power can make machines’ operation more flexible and convenient, enhance the range of  equipment construction application.

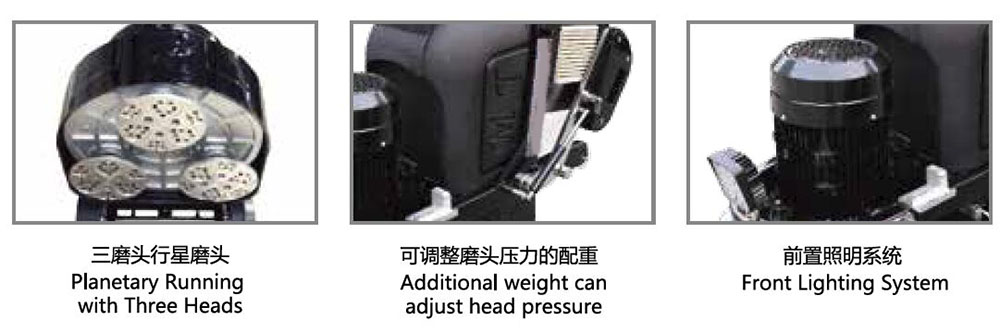

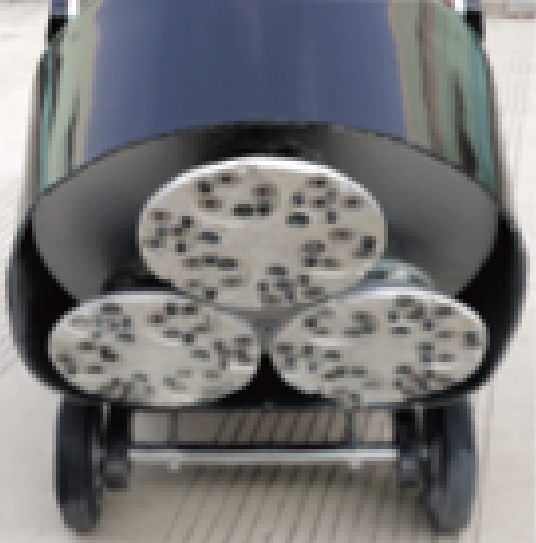

    It continues LEADING classic gear-driving design, three grinding plate planetary running, ensure construction efficiency and the quality of construction project.

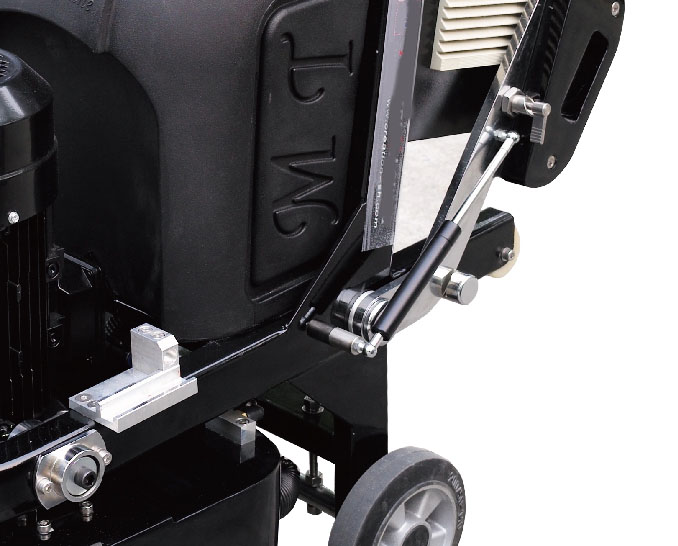

    Fold-able weight from ergonomic to ensure better grinding effect, and ensure better grinding performance.

    Equipped with LED lighting system and USB interfaces, the perfection of humanity industrial design can bring the pleasant working atmosphere to operator.


    Technical Parameters:

    ModelLDT-520 Gear-Driving Planetary Floor Grinding / Polishing Machine

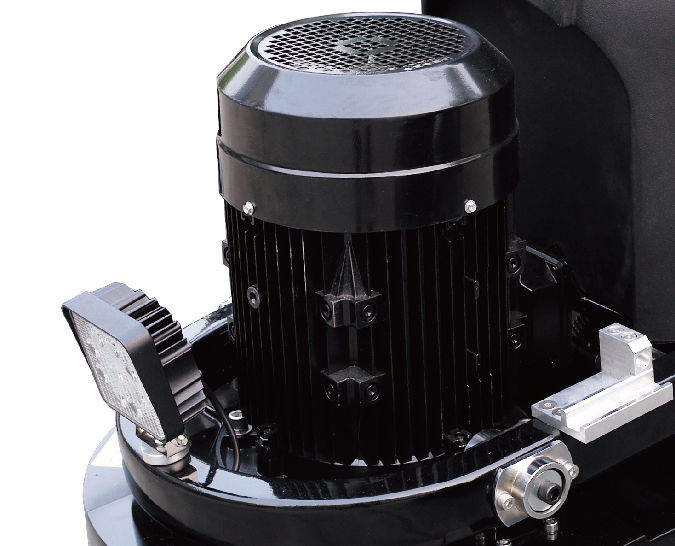

    MOTOR4.5KW   5.5HP
    INVERTER5.5KW   7.5HP
    VOLTAGEsingle   phase/3 phase 220V/380V/460V
    AMPERE11A-13A
    WATER TANK528   us gal/20L
    WORKING WIDTH20.47   in / 520 mm
    WEIGHT485   lbs / 220 kg
    LENGTH41.73   in / 1060 mm
    WIDTH21.56   in / 545 mm
    HEIGHT45.08   in / 1145 mm
    REVOLUTION0~150   rpm
    ROTATION0~1200   rpm
