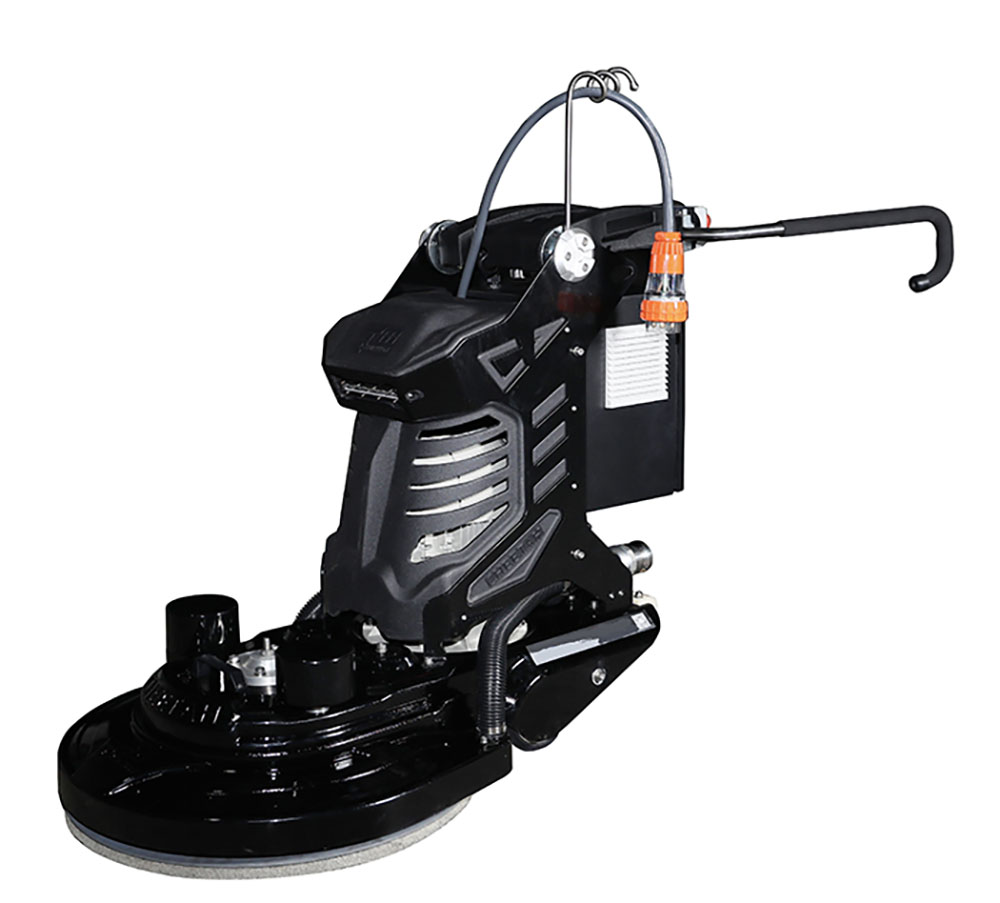

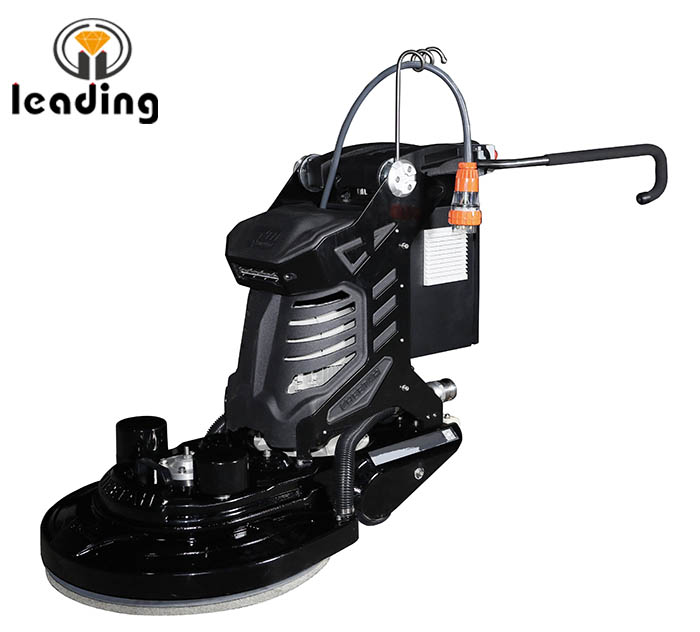

LDT-2500H High Speed Floor Polishing Machine

LDT-2500H High Speed Floor Polishing Machine

  • Detailed Specification
  • FAQ

    LDT-2500H High Speed Floor Polishing Machine

    LDT-2500H High Speed Floor Polishing Machine


    LDT-2500H High Speed Floor Polishing Machine was born in 2011, is China's first large expansion high speed ground treatment equipment. Compared to traditional construction operations, increase several times of the effectiveness, substantially save labor costs and improve the ground table light effect. Since of the amazing efficiency, the machine is named CHEETAH. Not only the machine can be used in later period polishing treatment, equipped with special polishing pads, but also can be better used to grind and polish the ground that is low ground flatness requirements. It marks that Tuomei company provides with the serialized ground handling solutions equipments.


    LDT-2500H High Speed Floor Polishing Machine is the high speed polishing equipment, work area 700mm and maximum speed 2500 rpm. Omit 3-4 steps procedures compared to traditional construction and reach the same construction effect. Equipped with special soft polishing pad; only 3 steps procedures can grind and polish the wear resistant floor; Change the defects of uneven explicit surface of traditional construction floor, poor appearance effect, high construction cost and so on. The unique mechanical design can improve the sticking force to the ground during mechanical operation; high efficiency and high speed equipment characteristics; 5-6 times than ordinary machinery and laid the foundation for the new technology of wear resistant floor construction — Grout- protection Construction.


    Technical Paramaters:

    ModelLDT-2500H High Speed Floor Polishing Machine
    MOTOR7.5KW   10HP
    INVERTER11KW   15HP
    VOLTAGE3   phase 220V/380V/460V
    AMPERE16-20A
    WORKING WIDTH27.56   in / 700 mm
    WEIGHT386   lbs / 175 kg
    LENGTH46.85   in / 1190 mm
    WIDTH27.56   in / 700 mm
    HEIGHT41.34   in / 1050 mm
