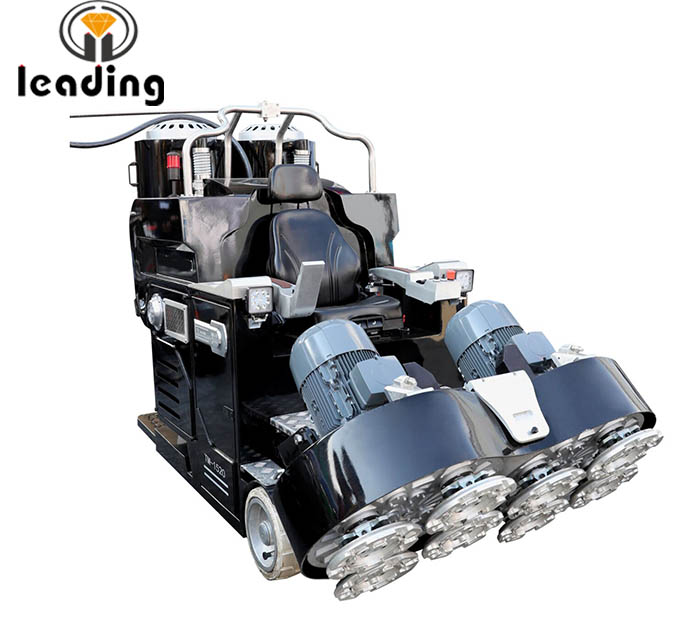

This is the laregest of gear-driven ride on grinding machine, it is adhere many years research and innovation spirit of LEADING, we hope that LDT-1520 Ride-on Floor Grinding Machine can play unique advantange from the design of the machine appearance, operate perforamance, the working effciency in the rofect. The apperance of LDT-1520 Ride-on Floor Grinding Machine is full of force sense, such as a beast to invade all thngs in the project. Cool and fashion, with a particular focus on the details of the sense of technology. Workmanship with originality, no one can rival.

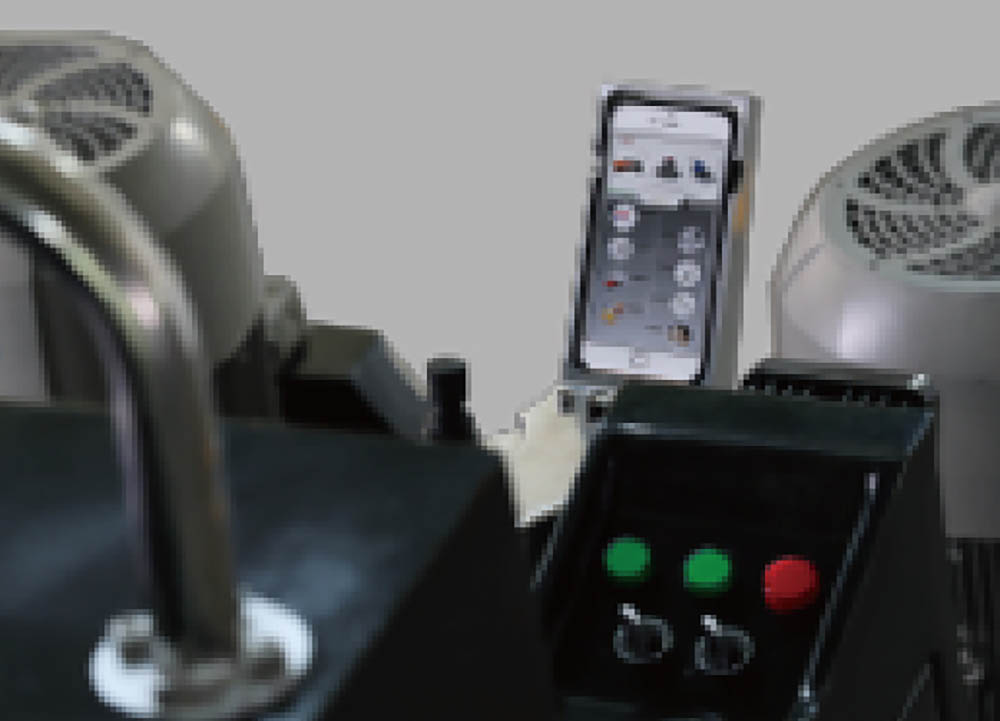

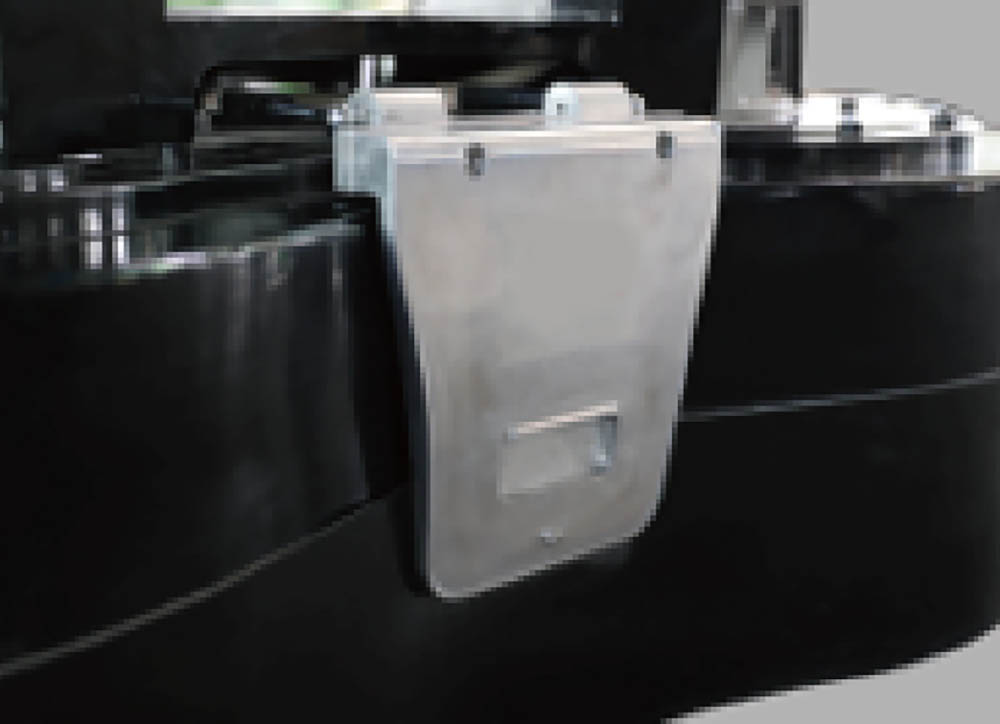

LDT-1520 Ride-on Floor Grinding Machine is suitable for large-scale construction of floor grinding equipment, equipped storage battery, wasy loading and transportation, machines equipped with 2 pieces of 20 HP motors, with 1520mm working area, the grining machine has incredibly effective make it can complete the construction of large area in a short time. Easy to operate, it is also equipped APP project management and control which supply facilitate to construction of the project. Integrated suction devices design that can significanty reduce labor costs in the project. The grinding head can be freely raised and lowered, and convenient to replace tools.
Technical Parameters:
Model | LDT-1520 Ride-on Floor Grinding Machine |
MOTOR | 2*20HP |
INVERTER | 50HP |
VOLTAGE | 3 phase 220V/380V/460V |
AMPERE | 40A-50A |
WORKING WIDTH | 59.84 in / 1520 mm |
WEIGHT | 3968 lbs / 1800 kg |
WIDTH | 59.84 in / 1520 mm |
HEIGHT | 75.98 in / 1930 mm |
REVOLUTION | 0-150 rpm |
ROTATION | 0-1200rpm |
