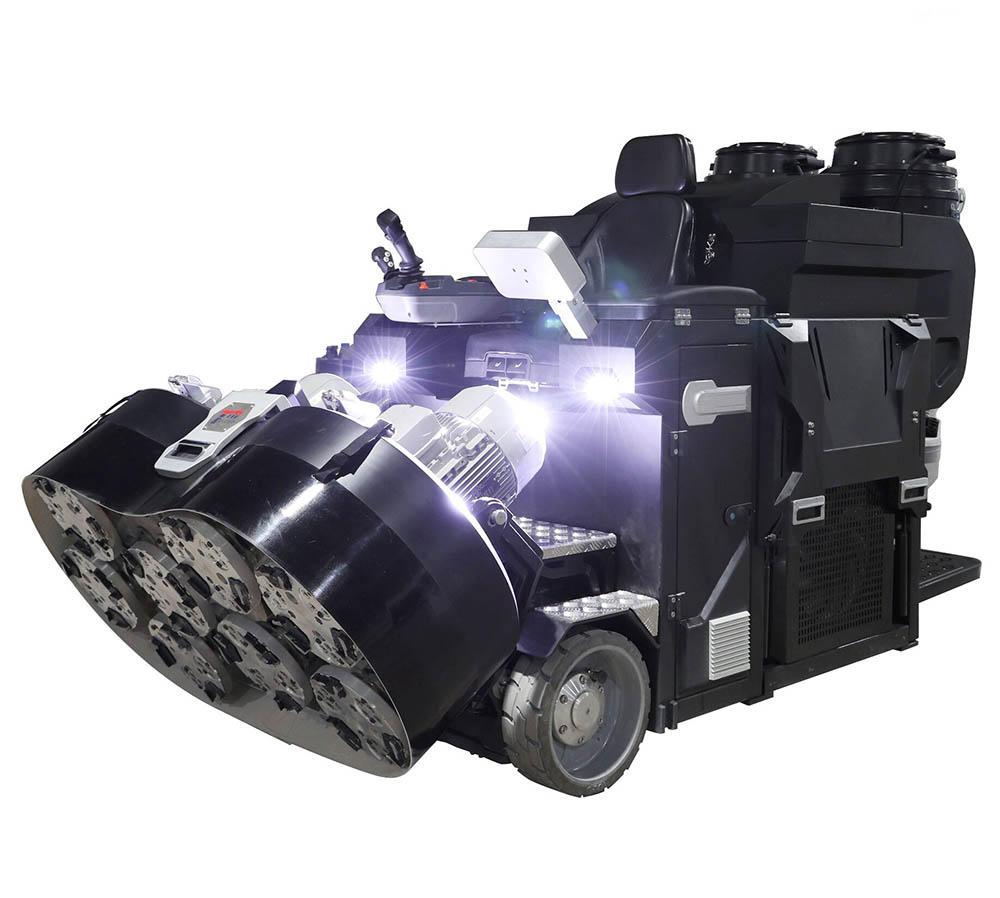

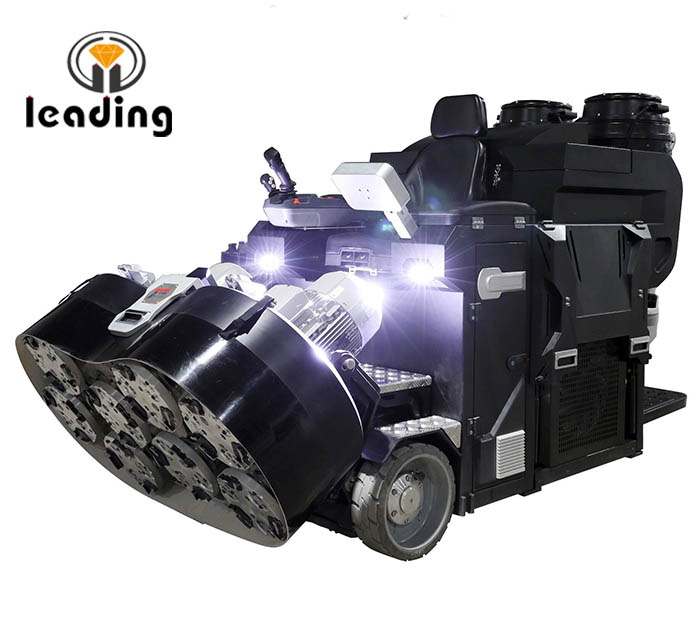

LDT-1360 Double Power System Floor Grinder

LDT-1360 Double Power System Floor Grinder

  • Detailed Specification
  • FAQ

    LDT-1360 Double Power System Floor Grinder was born in 2019, it is a double power system equipment, you have different option according to the construction situation. You can do jobs through cable if equip with electricity. If without electricity power, you can do the construction by fuel, more convenient operation and transportation. Design for quick assemble parts. It can solve the trouble of cable power under the fuel mode, reduce the labor as well, create the high efficiency construction with lower labor cost.

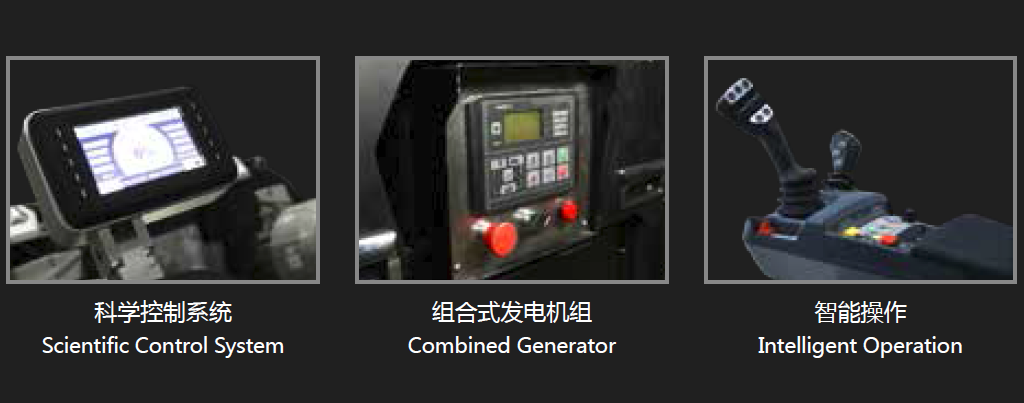

    Supply intelligent and high-efficiency equipment is our mission. This machine design with scientific control system, aim at different environment, combined scientific polishing system, it can quickly set up standard operating procedures, then minimize the human skill factor. This type of machine can make the construc tion intelligent and high-efficiency, make you more aggressive and control the construction cost at the same time.


    LDT-1360 Double Power System Floor Grinder

    LDT-1360 Double Power System Floor Grinder

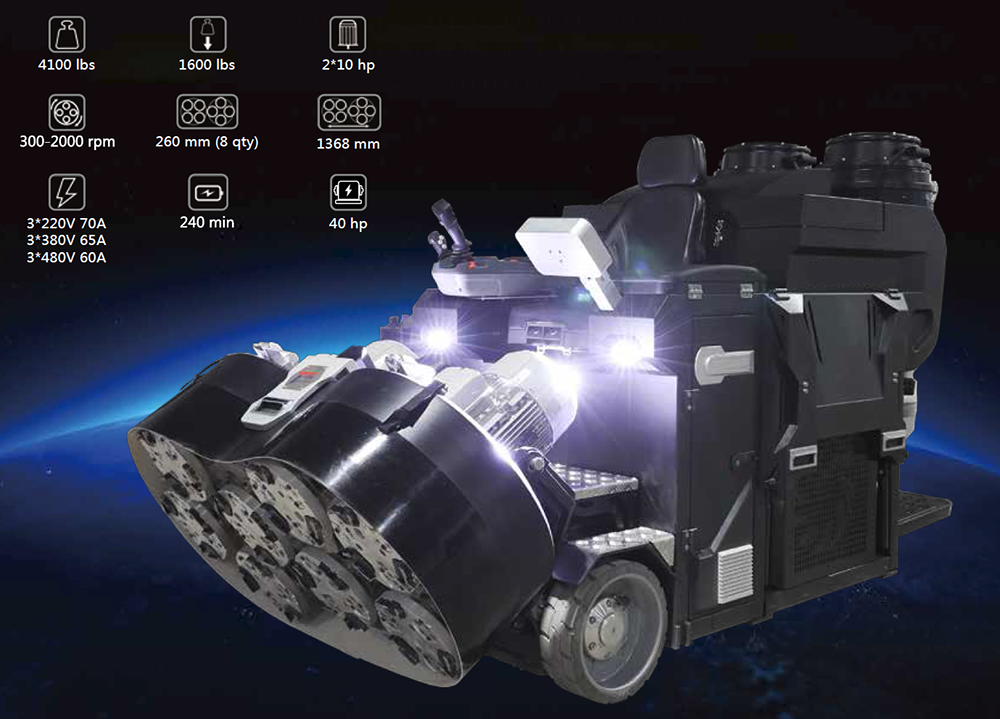

    Technical Parameters:

    ModelLDT-1360 Double   Power System Floor Grinder
    MOTOR2 × 7.5 KW    20HP
    INVERTER22   KW  30HP
    VACUUM2   × 3.6 KW  10HP
    POWERGENERATOR   / FUEL
    VOLTAGE3   phase 220V/380V/460V
    AMPERE30A-40A
    WORK AREA53.86   in / 1368 mm
    WEIGHT4100   lbs / 1860 kg
    LENGTH111.42   in / 2830 mm
    WIDTH53.86   in / 1368 mm
    HEIGHT66.53   in / 1690 mm
    REVOLUTION0-150   rpm
    ROTATION0-1200   rpm
