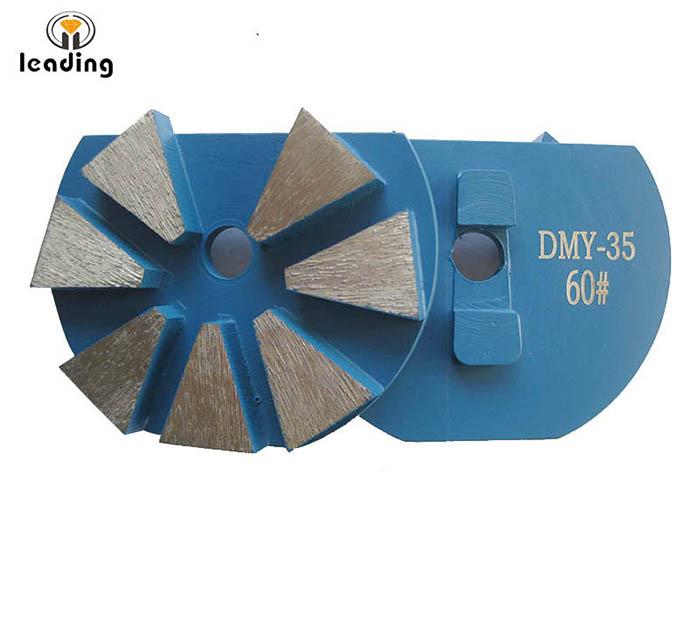

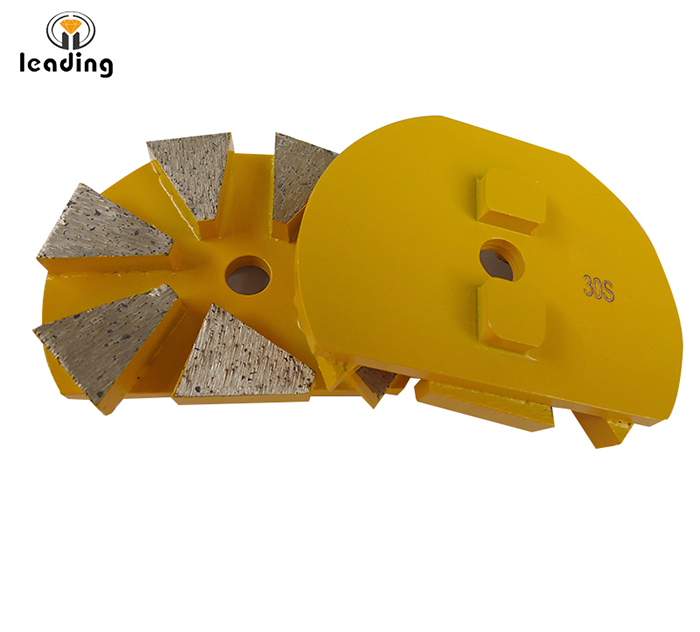

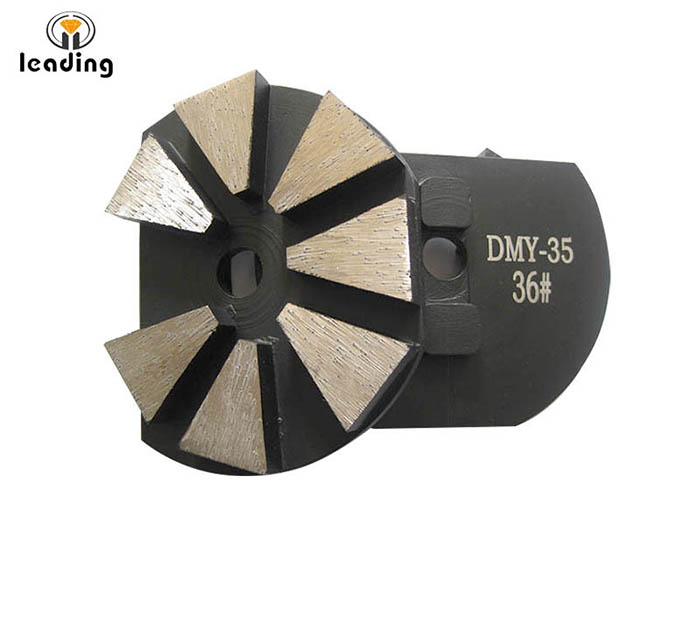

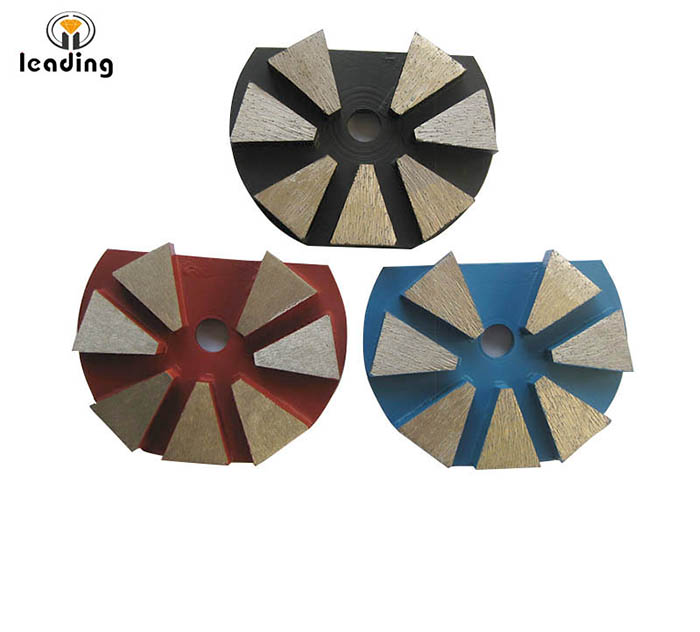

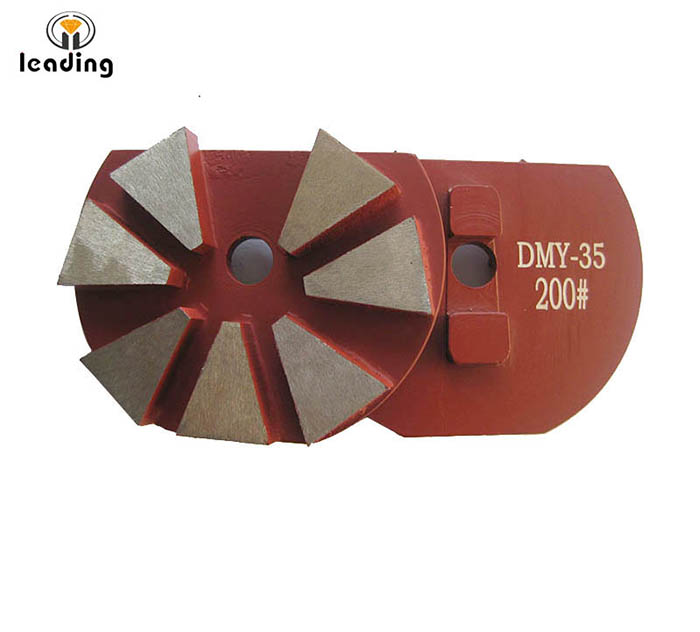

STI Surface Prep Tooling - 7-Seg Diamonds

1 Diameter: 3"(76/83mm)

2 Segment Shape: Radial/Beveled edge

3 Segment Size: 24x3.7/20x8mm or made as your demand.

4 Segment No.: 7 segments.

5 Grit: 6#, 18/20#, 30/40#, 60/80#, 120# grit and 200# or made as your demand

6 Bond Type: soft, medium and hard bond.

7 Backing system: EG "Quick Change" Attachment Also, available with pin or E/Z Plug


  • Detailed Specification
  • FAQ

    Leading Diamond Grinding Pucks are designed for all purpose grinding on a wide range of substrates. We offer the following grits 6, 18/20, 30/40, 60/80, 120/150 and 200# grits.


    This puck comes with EG "Quick Change" Attachment Also, available with pin or E/Z Plug for multiple machines.


    The radial shape enables machines to ride smoothly up and over existing expansion joints while minimizing chipping and reducing stress to machine gears, couplers, and belts.


    The beveled edge diamonds are also very helpful when attempting to grind without creating noticeable scratch marks on an uneven floor. We will help you find the right bond and diamond surface area to make your machine perform its best.


    Hard Bond: For soft abrasive concrete /mortar; This Harder metal bond segment gives longer life in abrasive applications

    Medium Bond: For Medium /Hard concrete and removal of light chemical residue, paints

    Soft Bond: Softer bond offers fast grinding for very hard concrete


    STI Surface Prep Tooling - 7-Seg Diamonds

    STI Surface Prep Tooling - 7-Seg Diamonds

    STI Surface Prep Tooling - 7-Seg Diamonds

    STI Surface Prep Tooling - 7-Seg Diamonds
