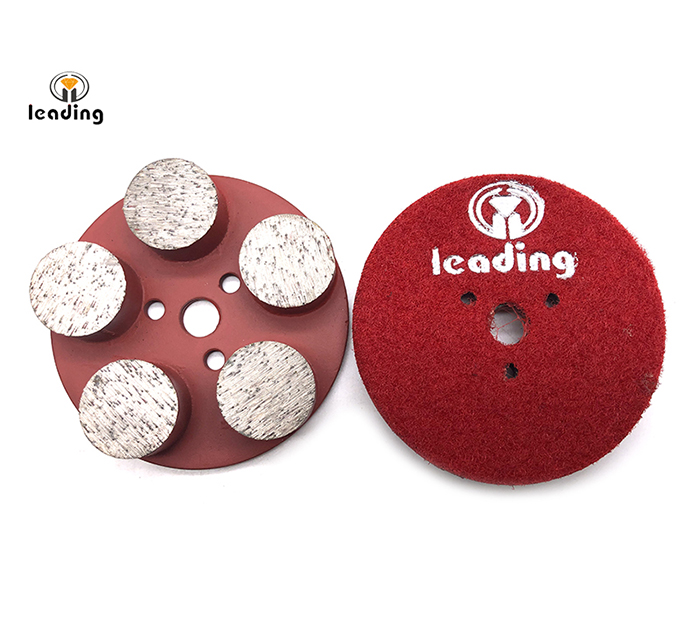

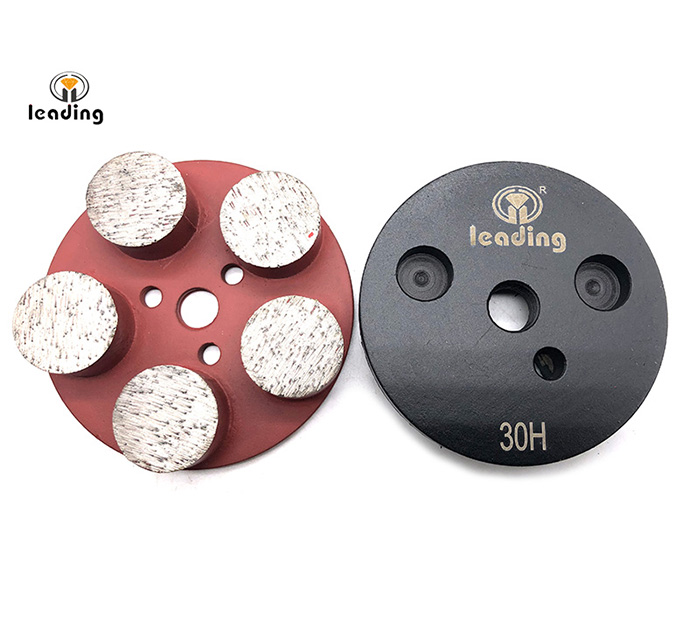

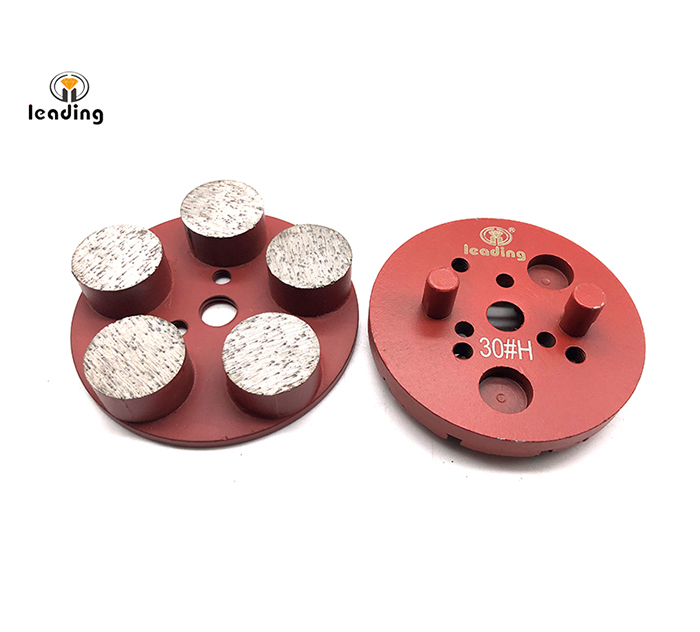

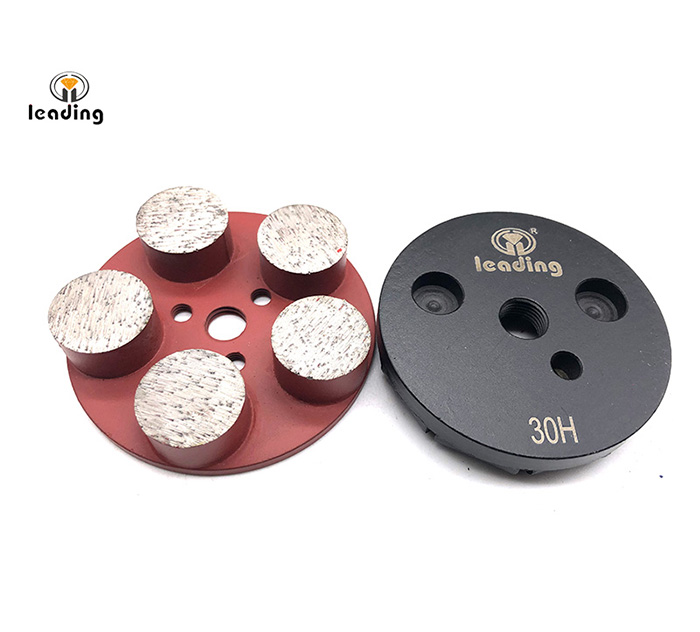

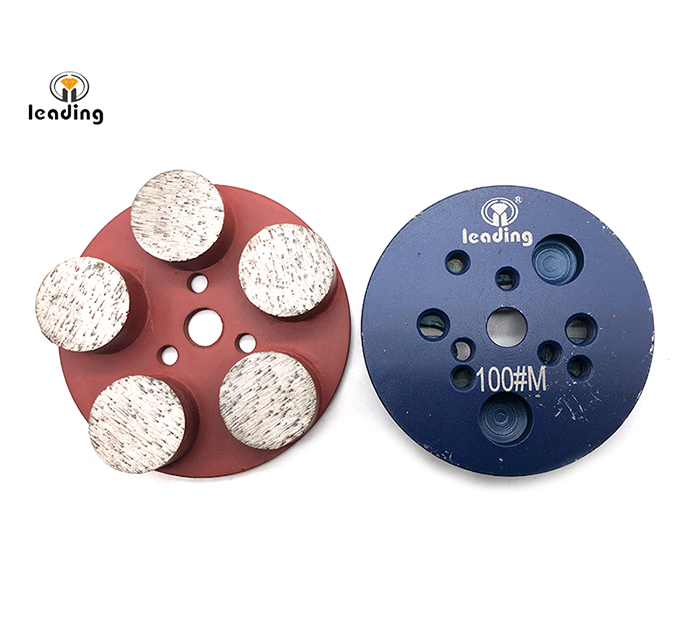

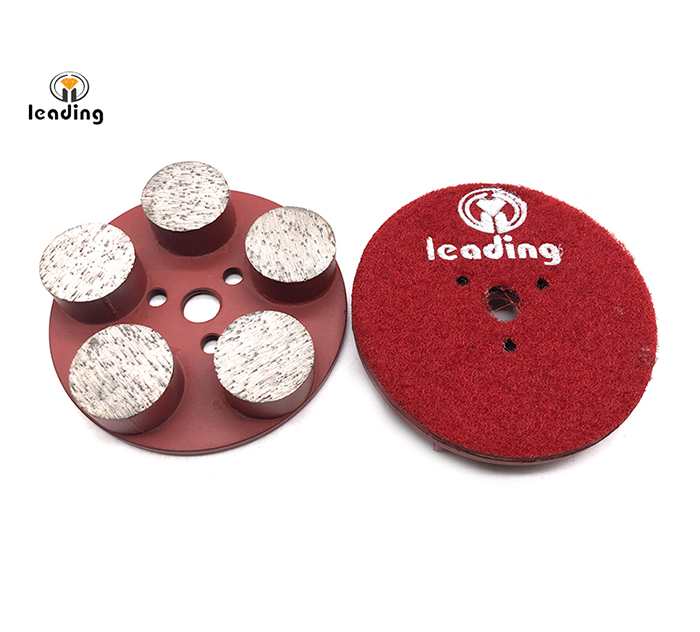

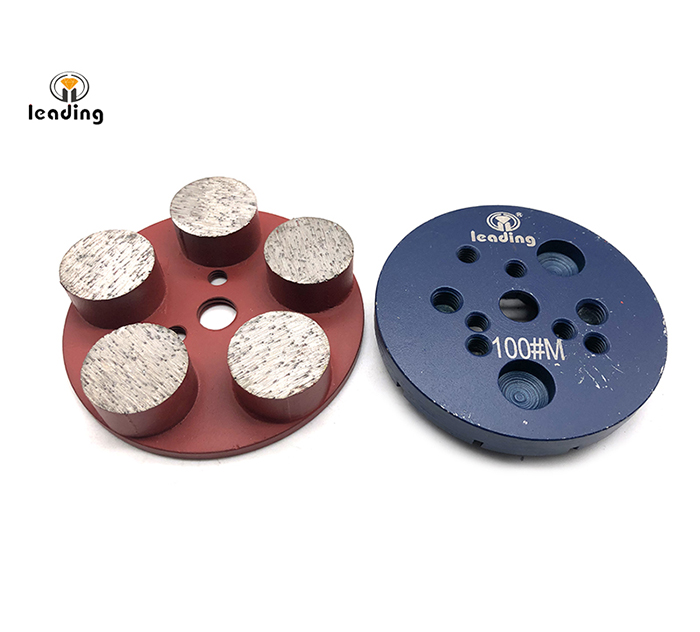

3" Grinding Puck 5 Round Seg

Seg Size: Φ25x12.5mm

Effective for epoxy removal & soft abrasive floors.

High quality bond with a high diamond concentration for fast production and long life.

Available in multiple attachment configurations, Polar Magnetic System & 1/2-20 thread, Female hook & loop, One & two pin systems, HTC, Redi-lock system etc.

  • Detailed Specification
  • FAQ

    Leading Diamond Grinding Pucks are designed for all purpose grinding on a wide range of substrates. We offer the following grit: 6#, 18/20#, 30/40#, 60/80#, 120#, 200# and 400# or made as your demand. These pucks come with multiple holes and pins configurations to fit many machines. These popular designed pucks and plugs in many bonds and designs to cover a wide range of machines in the market. The radial shape enables machines to ride smoothly up and over existing expansion joints while minimizing chipping and reducing stress to machine gears, couplers, and belts. Beveled edge diamonds are also very helpful when attempting to grind without creating noticeable scratch marks on an uneven floor. We will help you find the right bond and diamond surface area to make your machine perform its best.


    Hard Bond: For soft abrasive concrete /mortar; This Harder metal bond segment gives longer life in abrasive applications

    Medium Bond: For Medium /Hard concrete and removal of light chemical residue, paints

    Soft Bond: Softer bond offers fast grinding for very hard concrete


    Recommended Tools' Bond Type

    Trapezoid 2-Bar Diamond Grinding Plate

    3

    3

    3

    3
