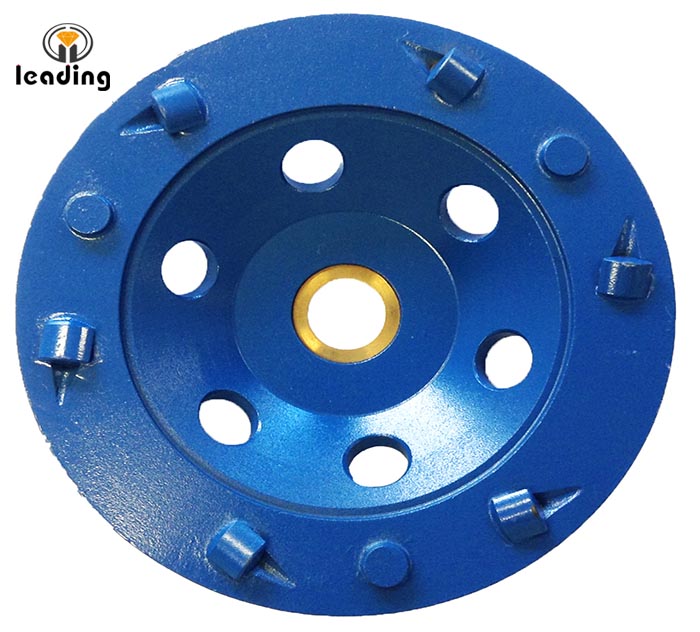

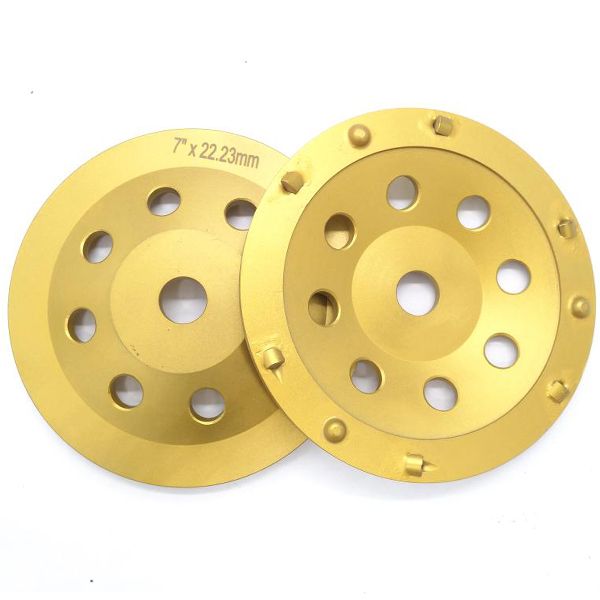

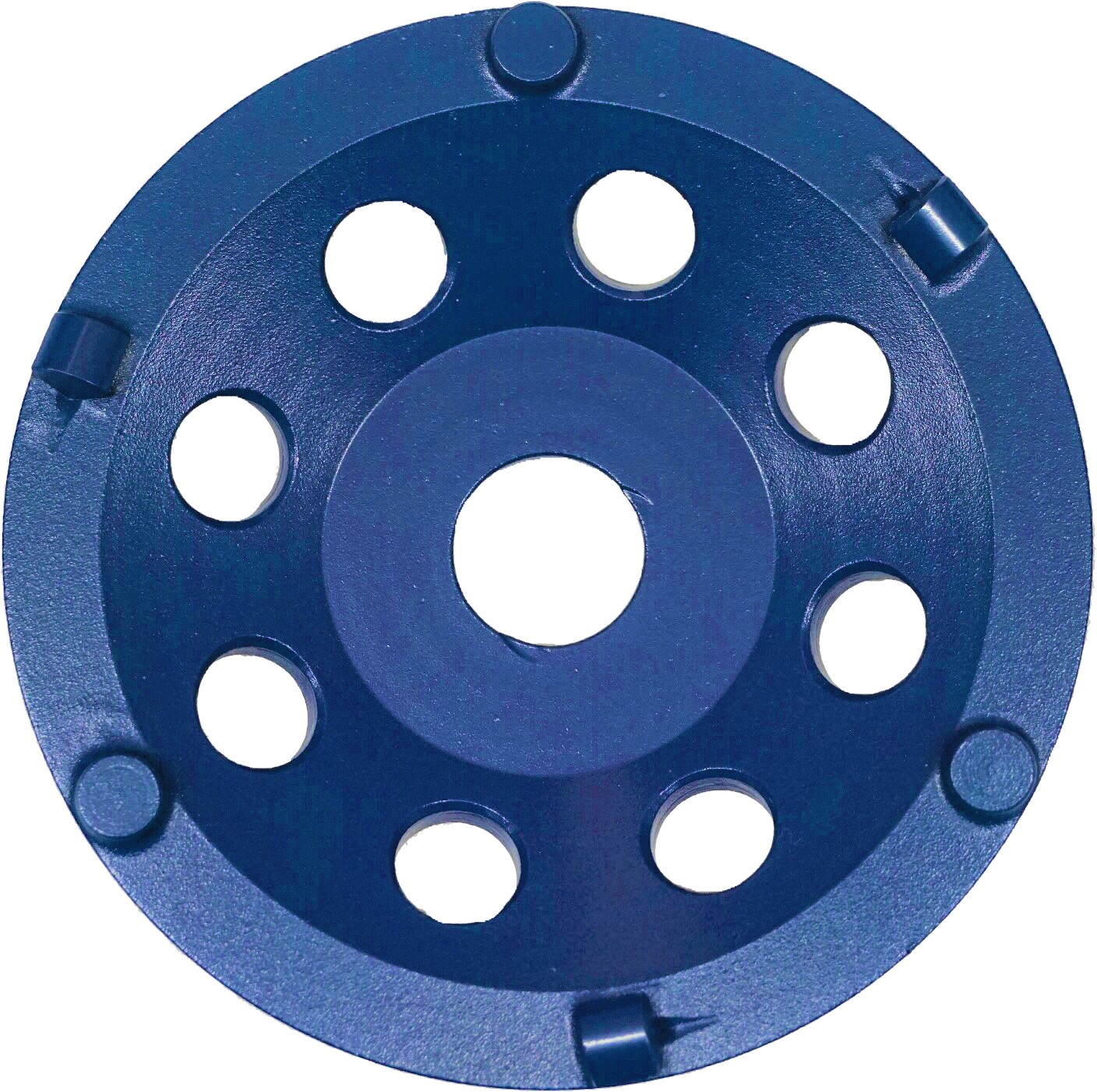

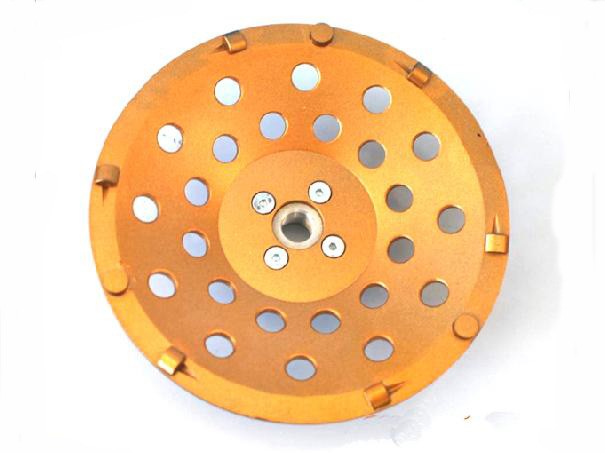

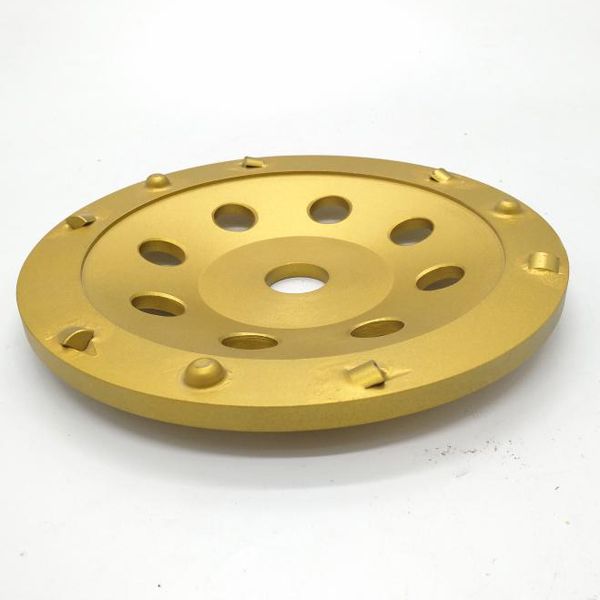

Polycrystalline diamond PCD grinding wheel is the greatest tool in coatings removing which has been widely used during these years. These PCD diamond grinding cup wheels are not like any other diamond grinding wheels you may have used previously. For these PCD grinding wheels scrapes the coatings off from the concrete surface instead of grinding them off like traditional diamond grinding cup wheels. The PCD segments cut through epoxy, glue, mastics and other coatings much quicker. Besices the PCD segment have add excessive heat to these coatings while working.
Application:
Polycrystalline dimaond PCD cup wheel is done with high grade polycrystalline diamond which is installed on grinders , and it is the best tool for: heavy epoxy removing
* Concrete floor coatings like mastics, glue and other adhesives removing
* Concrete floor preparations before concrete grinding
Machine: the PCD cup wheel is installed on angle grinder.
PCD Segment: Quarter(1/4) PCD or 1/3 PCD
Description:
The polycrystalline diamond PCD is a very hard and wear resistant material in all direction.
The PCD diamond cup wheel is installed on angle grinders for use
The versatile PCD cup wheels scrapes and rips coatings of different thickness from the surface which eliminates gumming up of segments and maximizes production.
The polycrystalline diamonds will never load up or smear the coatings like a metal bond diamond tool
Quarter size PCD is suitable for heavy duty and long life use
High quality PCD can make the diamond cup wheel work with aggressive speed.
The PCD cup wheel can do either wet or dry grinding
The PCD is welded together with hard alloy which will keep good balance and reduce wobbling of the wheel during use.
