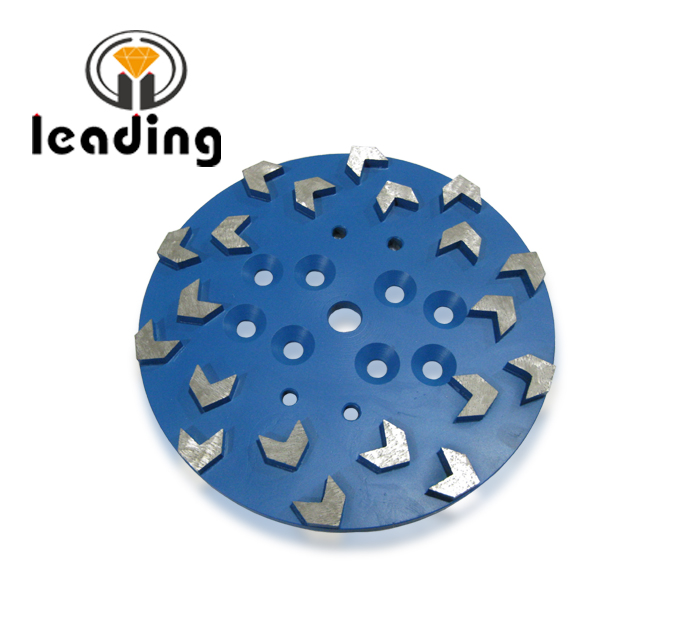

10 inch (250mm) Arrow Premium Grinding Plate

1 Diameter: 10"(250mm)

2 Segment Shape: Arrow

3 Segment Size: 24x14x8mm or made as your demand.

4 Segment No.: 10, 16 or 20 segments or made as your demand.

5 Grit: 6#-200# or made as your demand

6 Bond Type: soft, medium and hard bond


  • Detailed Specification
  • FAQ

    Our Hi-quality 10"(250mm) Diamond grinding plates are made for single and other twin header RPM concrete floor grinding machines, with universal drilled holes to suit most machines. The various segment and bond configurations can assure you will find exactly what you need to complete your job. Choose from 10, 16 and 20 segments for longer life.


    The Plates are the best solution for large areas of thin coating removal, leveling and smoothing high spots in concrete, and work very well for concrete cleaning. Their segments are designed for aggressive grinding of concrete to make short work of your larger projects. These plates are also ideal for the initial steps in concrete polishing procedures.


    To ensure that you have the right grinder and abrasive for the job, consider these important points: the type of coating or other contaminant that is being removed; the psi of the concrete surface, taking into account the age of the concrete and the geographic location of the job site; the size of the job in square feet; and the power sources available on the job site.

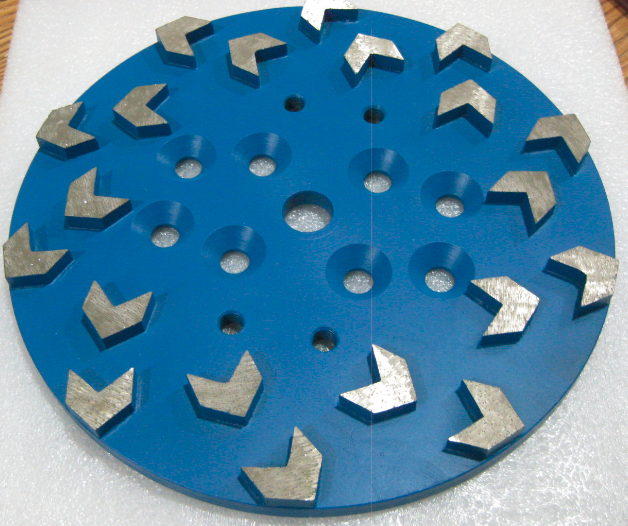

    10 inch (250mm) Arrow Premium Grinding Plate

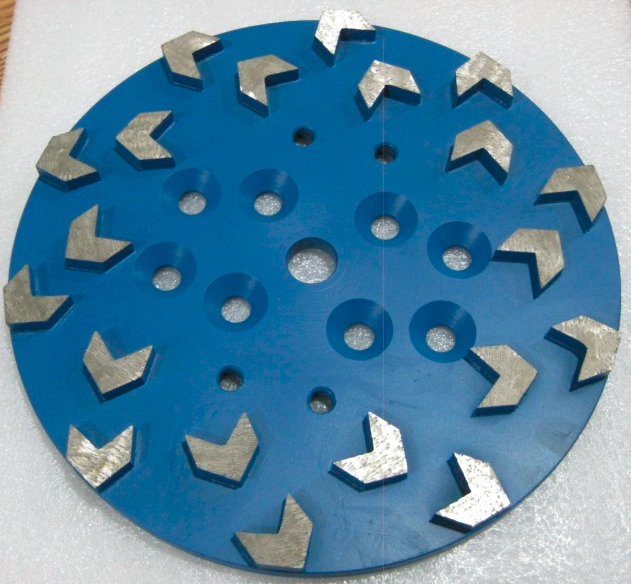

    10 inch (250mm) Arrow Premium Grinding Plate

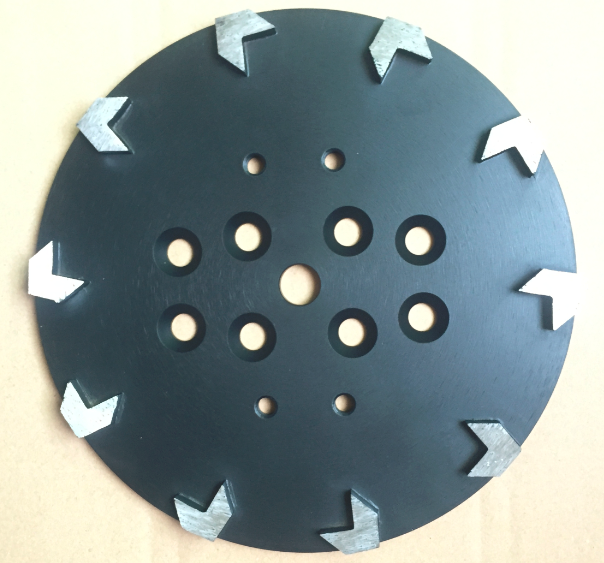

    10 inch (250mm) Arrow Premium Grinding Plate
